EVCA05 | IFM electronic

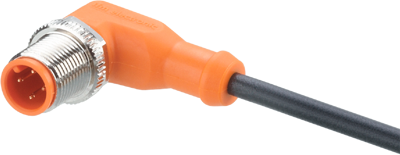

Sensor actuator cable, M12 cable plug, angled, A to open end, 4 pole, 25 m, PUR, black, 4 A, EVCA05
Order No.: 82P4016
MPN:
EVCA05
Unit Price (€ / pc.)
75.6721 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
75.67 € *
Price list
Quantity
Price per unit*
1 pcs.
75.6721 €
3 pcs.
72.3996 €
5 pcs.
69.4008 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, EVCA05, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Wide operating temperature range
Technical specifications
| Connection (1) | M12 cable plug, angled, A | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Cable length | 25 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| LED display | No | |
| max. Voltage | 300 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
