EVC956 | IFM electronic

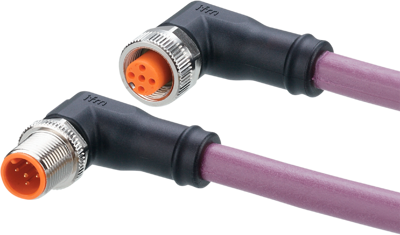

Sensor actuator cable, M12 cable plug, angled, A to M12 cable socket, angled, A, 5 pole/5 pole, 10 m, PUR, purple, 4 A, EVC956
Order No.: 82P3985
EAN: 4021179339162
MPN:
EVC956
Unit Price (€ / pc.)
190.7213 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
190.72 € *
Price list
Quantity
Price per unit*
1 pcs.
190.7213 €
3 pcs.
185.7352 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, EVC956, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Large cable cross-section for reducing the voltage drop
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Connection (1) | M12 cable plug, angled, A | |
| Connection (2) | M12 cable socket, angled, A | |
| Pin number | 5 pole/5 pole | |
| Cable length | 10 m | |
| Colour | purple | |
| Material | PUR | |
| Degree of protection (IP) | IP67/IP68/IP69K | |
| LED display | No | |
| max. Voltage | 36 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
