E70224 | IFM electronic

Name: Sensor actuator cable, M12 cable plug, straight, A to valve connector DIN form A, angled, 3 pole/4 pole, 1.5 m, PUR/PVC, E70224
Brand: IFM electronic
SKU: 82P2919
Availability: OutOfStock

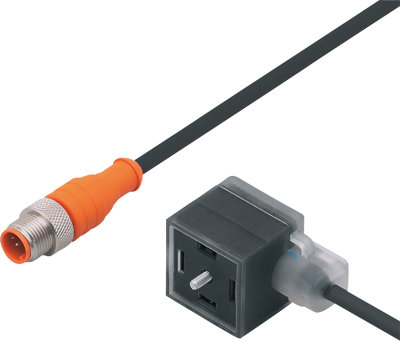

Sensor actuator cable, M12 cable plug, straight, A to valve connector DIN form A, angled, 3 pole/4 pole, 1.5 m, PUR/PVC, E70224

Order No.: 82P2919

EAN: 4021179072403

MPN:

E70224

Image may differ

Key Specification:

Connection (1) M12-Kabelstecker, gerade, A

Connection (2) Ventilsteckverbinder DIN form A, abgewinkelt

Pin number 3-polig/4-polig

Cable length 1.5 m

Download Datasheet Technical specifications

Unit Price (€ / pc.)

36.9852 € *

Available: 0 pcs.

Leadtime: 1 Week **

Total Price:

36.99 € *

Price list

Quantity

Price per unit*

1 pcs.

36.9852 €

3 pcs.

35.3787 €

5 pcs.

33.9031 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Connection cable, E70224, IFM electronic

Features

Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Clearly visible LED
Robust rectangular connector

Technical specifications

	Connection (1)	M12-Kabelstecker, gerade, A
	Connection (2)	Ventilsteckverbinder DIN form A, abgewinkelt
	Cable length	1.5 m
	LED display	Yes
	Material	PUR/PVC
	max. Voltage	24 V
	Pin number	3-polig/4-polig
	Degree of protection (IP)	IP67
