E12560 | IFM electronic

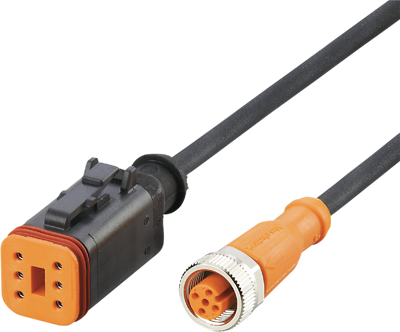

Sensor actuator cable, DEUTSCH cable socket, straight to M12 cable socket, straight, A, 6 pole, 1 m, PUR, black, 4 A, E12560
Order No.: 82P2013
EAN: 4021179309691
MPN:
E12560
Unit Price (€ / pc.)
50.0157 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
50.02 € *
Price list
Quantity
Price per unit*
1 pcs.
50.0157 €
3 pcs.
47.8499 €
5 pcs.
45.8626 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connection cable, E12560, IFM electronic
Features
- For use in mobile machines and vehicles
- Wide operating temperature range
- DEUTSCH connector for the fast and easy connection to the on-board system
- High protection rating for the requirements of harsh industrial environments
- PUR cable with good drag chain suitability
Technical specifications
| Connection (1) | DEUTSCH-Kabeldose, gerade | |
| Connection (2) | M12-Kabeldose, gerade, A | |
| Pin number | 6-polig | |
| Cable length | 1 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 32 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
