E12508 | IFM electronic

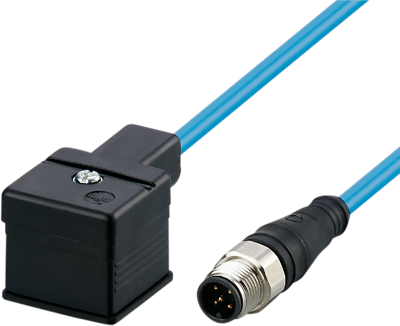

Sensor actuator cable, M12 cable plug, straight, A to valve connector DIN form A, angled, 5 pole/4 pole, 0.3 m, PVC, blue, E12508
Order No.: 82P1977
EAN: 4021179298858
MPN:
E12508
Unit Price (€ / pc.)
47.2073 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
47.21 € *
Price list
Quantity
Price per unit*
1 pcs.
47.2073 €
3 pcs.
45.1605 €
5 pcs.
43.2922 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, E12508, IFM electronic
Features
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- For applications in hazardous areas
- Robust rectangular connector
Technical specifications
| Cable length | 0.3 m | |
| Colour | blue | |
| LED display | No | |
| max. Voltage | 15 V | |
| Degree of protection (IP) | IP67 | |
| Connection (2) | valve connector DIN form A, angled | |
| Pin number | 5 pole/4 pole | |
| Material | PVC | |
| Connection (1) | M12 cable plug, straight, A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
