E12401 | IFM electronic

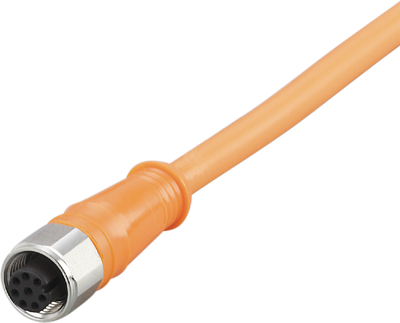

Sensor actuator cable, M12 cable socket, straight, A to open end, 8 pole, 40 m, PVC, orange, 2 A, E12401
Order No.: 82P1926
EAN: 4021179281935
MPN:
E12401
Unit Price (€ / pc.)
201.3123 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
201.31 € *
Price list
Quantity
Price per unit*
1 pcs.
201.3123 €
3 pcs.
196.0406 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, E12401, IFM electronic
Features
- 8-pole connection
- High protection rating for the requirements of the food and beverage industry
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
Technical specifications
| Connection (1) | M12 cable socket, straight, A | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Cable length | 40 m | |
| Colour | orange | |
| Material | PVC | |
| Degree of protection (IP) | IP68/IP69K | |
| LED display | No | |
| max. Voltage | 36 V | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
