E11809 | IFM electronic

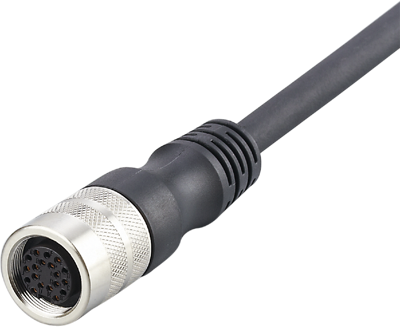

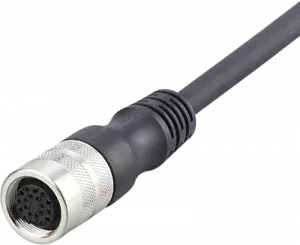

Sensor actuator cable, M16-cable socket, straight to open end, 14 pole, 10 m, PVC, black, 3 A, E11809
Unit Price (€ / pc.)
168.6230 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
168.62 € *
Price list
Quantity
Price per unit*
1 pcs.
168.6230 €
3 pcs.
164.2081 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, E11809, IFM electronic
Features
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M16-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 14 pole | |
| Cable length | 10 m | |
| Colour | black | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
