E11744 | IFM electronic

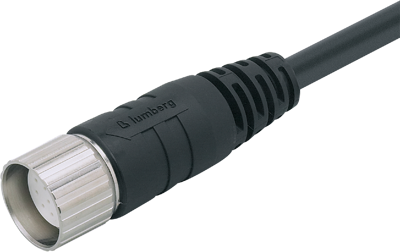

Sensor actuator cable, M23-cable socket, straight to open end, 19 pole, 15 m, PUR, black, 8 A, E11744
Unit Price (€ / pc.)
413.9058 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
413.91 € *
Price list
Quantity
Price per unit*
1 pcs.
413.9058 €
3 pcs.
403.4695 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, E11744, IFM electronic
Features
- Reliable connection of controllers and dialogue units
- Wide operating temperature range
- Suited for use in mobile machines
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M23-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 19 pole | |
| Cable length | 15 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 63 V | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
