E10819 | IFM electronic

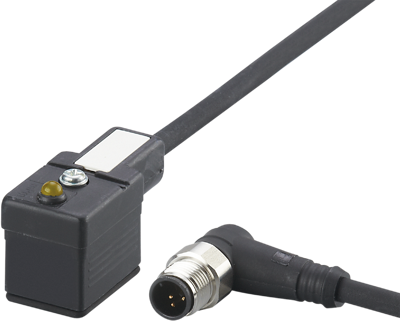

Sensor actuator cable, M12 cable plug, angled, A to valve connector form B, angled, 3 pole/3 pole, 0.3 m, PUR, black, E10819
Unit Price (€ / pc.)
55.6444 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
55.64 € *
Price list
Quantity
Price per unit*
1 pcs.
55.6444 €
3 pcs.
53.2287 €
5 pcs.
51.0272 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, E10819, IFM electronic
Features
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED
- Robust rectangular connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | valve connector form B, angled | |
| Material | PUR | |
| Cable length | 0.3 m | |
| max. Voltage | 24 V | |
| LED display | Yes | |
| Pin number | 3 pole/3 pole | |
| Connection (1) | M12 cable plug, angled, A | |
| Degree of protection (IP) | IP67 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
