G1502S | IFM electronic
G1502S, Safety relay, 114 x 50 x 105 mminfrared light, Lens type standard, (28 x 21)...(
Unit Price (€ / pc.)
471.5732 € *
Standard delivery time from the manufacturer is: 1 Week

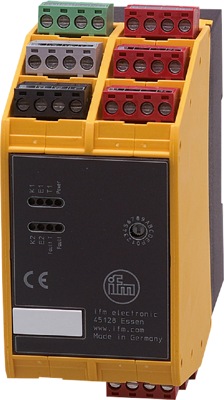

Safety relay, G1502S, IFM electronic
Features
- Signal output via potential-free relay contacts
- Safety relay with cross-fault monitoring and possible simultaneity monitoring
- Connection of mechanical safety switches and electronic fail-safe sensors
- Switching device for two-hand control with mechanical or electronic switches
- Monitored or automatic start selectable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 105 mm | |
| Height | 114 mm | |
| Assembly | mounting rail | |
| Width | 50 mm | |
| Type of Use | for connecting electronic and mechanical safety relays and for use as a two-hand control unit | |
| Version | safety switching device |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
