NN504A | IFM electronic
Inductive sensor, NAMUR, flush mounting, not flush, 2 Form B (N/C), 8.2 V (DC), NN504A
Unit Price (€ / pc.)
206.9767 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
206.98 € *
Price list
Quantity
Price per unit*
1 pcs.
206.9767 €
3 pcs.
201.5503 €
*incl. VAT plus shipping costs
Subject to prior sale

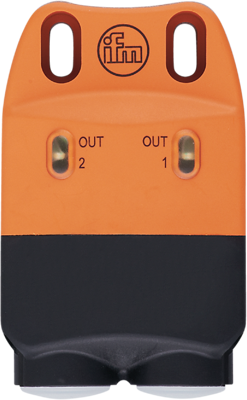

Inductive sensor, NN504A, IFM electronic
Features
- For monitoring valve positions
- For reliable position feedback on valve actuators
- For connection to intrinsically safe circuits
- Non-contact and self-cleaning system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Detecting distance | 4 mm | |
| Latching switching function | 2 Form B (N/C) | |
| Switching Voltage (DC) | 8.2 V | |
| Degree of protection (IP) | IP65/IP67 | |
| Length | 92 mm | |
| Assembly | flush mounting, not flush | |
| Version | NAMUR | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
