NM501A | IFM electronic
Inductive sensor, NAMUR, flush mounting, not flush, 1 Form B (N/C), 30 mA, NM501A
Order No.: 82P6733
EAN: 4021179168854
MPN:
NM501A
Unit Price (€ / pc.)
86.4892 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
86.49 € *
Price list
Quantity
Price per unit*
1 pcs.
86.4892 €
3 pcs.
82.7407 €
5 pcs.
79.3016 €
*incl. VAT plus shipping costs
Subject to prior sale

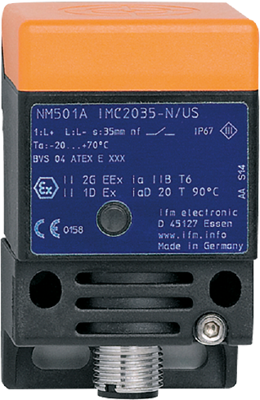

Inductive sensor, NM501A, IFM electronic
Features
- For applications in hazardous areas
- For connection to intrinsically safe circuits
- Long sensing range for use in conveying
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 66 mm | |
| Version | NAMUR | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP67 | |
| Product type | inductive sensor | |
| Assembly | flush mounting, not flush | |
| switching current | 30 mA | |
| Latching switching function | 1 Form B (N/C) | |
| Detecting distance | 35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
