MS5010 | IFM electronic
Magnet sensor, PNP, 1 Form A (N/O), 30 V (DC), 200 mA, MS5010
Order No.: 82P6692
EAN: 4021179151900
MPN:
MS5010
Unit Price (€ / pc.)
106.6359 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
106.64 € *
Price list
Quantity
Price per unit*
1 pcs.
106.6359 €
3 pcs.
103.6728 €
5 pcs.
100.8882 €
*incl. VAT plus shipping costs
Subject to prior sale

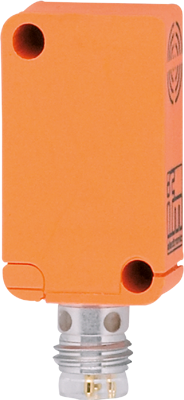

Magnetic sensor, MS5010, IFM electronic
Features
- Long sensing range of 60 mm
- High switching frequency for fast processes
- Flush or non-flush mountable in non-magnetisable metals
- Wide operating temperature range
- Compact housing for use where space is restricted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Product type | magnet sensor | |
| Version | PNP | |
| Degree of protection (IP) | IP67 | |
| Detecting distance | 60 mm | |
| switching current | 200 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Length | 28 mm | |
| Connection | M8-connector |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
