MR0119 | IFM electronic
Cylinder sensor, with reed contact, flush mounting, flush, 1 Form A (N/O), 50 V (DC), 500 mA, MR0119
Unit Price (€ / pc.)
42.7805 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
42.78 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7805 €
3 pcs.
40.9241 €
5 pcs.
39.2343 €
*incl. VAT plus shipping costs
Subject to prior sale

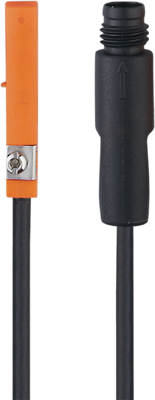

Cylinder sensor, MR0119, IFM electronic
Features
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
- Moulded cable ensuring very good strain relief
- Three-wire version for applications with high load currents
- Very high switching frequency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 50 V | |
| Connection | cable, PUR, 0.3 m/M8 connector | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 500 mA | |
| Length | 30.5 mm | |
| Product type | T groove cylinder sensor | |
| Assembly | flush mounting, flush | |
| Degree of protection (IP) | IP65/IP67 | |
| Switching Voltage (AC) | 50 V | |
| Version | with reed contact |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
