MFH206 | IFM electronic

Cylinder sensor, NPN, flush mounting M12, flush, 1 Form A (N/O), 36 V (DC), 200 mA, MFH206

Order No.: 82P6559
EAN: 4021179297158
MPN:
MFH206
Series: MFH
MFH206 IFM electronic Proximity Switches, Reed switches

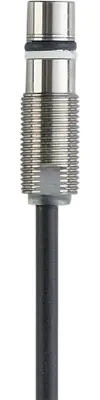

Image may differ
Unit Price (€ / pc.)
164.9935 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
164.99 € *
Price list
Quantity
Price per unit*
1 pcs.
164.9935 €
3 pcs.
160.4358 €
5 pcs.
156.1161 €
*incl. VAT plus shipping costs
Subject to prior sale

Cylinder sensor, MFH206, IFM electronic

Features

  • For position feedback on hydraulic cylinders
  • Pressure-resistant up to 500 bar
  • Metal sensing face for heavy duty
  • High bursting pressure
  • Lifespan of more than 10 million pressure cycles
Technical specifications
Filter Property Value
Connection cable, PUR 3x0.34 mm², 2 m
Detecting distance 1.8 mm
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 36 V
Degree of protection (IP) IP65/IP68/IP69K
Length 41 mm
Assembly flush mounting M12, flush
switching current 200 mA
Version NPN
Product type cylinder sensor
Logistics
Property Value
Country of origin DE
Customs tariff number 85365019
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
