M9H215 | IFM electronic
Position sensor, PNP/NPN, flush mounting M11, flush, 1 Form A (N/O), 36 V (DC), 100 mA, M9H215
Order No.: 82P6549
EAN: 4021179322058
MPN:
M9H215
Unit Price (€ / pc.)
245.6279 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
245.63 € *
Price list
Quantity
Price per unit*
1 pcs.
245.6279 €
3 pcs.
239.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

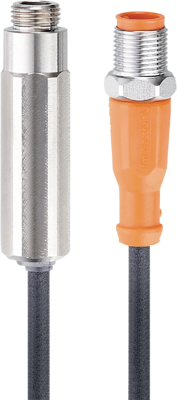

Position sensor, M9H215, IFM electronic
Features
- Pressure-resistant up to 350 bar
- Designed for use in plunger detection
- Compact and robust stainless steel housing
- Spanner flat for easy mounting
- High shock and vibration resistance for mobile applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | PNP/NPN | |
| Connection | cable, PUR, 2 m/M12 connector | |
| Assembly | flush mounting M11, flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 56.5 mm | |
| Product type | position sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
