M9H212 | IFM electronic

Position sensor, PNP, flush mounting M11, flush, 1 Form A (N/O), 60 V (DC), 100 mA, M9H212

Order No.: 82P6548
EAN: 4021179322027
MPN:
M9H212
Series: M
M9H212 IFM electronic Proximity Switches, Reed switches

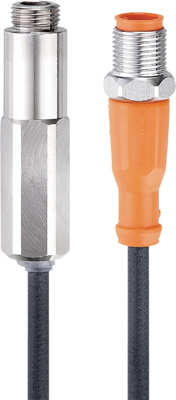

Image may differ
Unit Price (€ / pc.)
245.6279 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
245.63 € *
Price list
Quantity
Price per unit*
1 pcs.
245.6279 €
3 pcs.
239.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

Position sensor, M9H212, IFM electronic

Features

  • Pressure-resistant up to 350 bar
  • Designed for use in plunger detection
  • Compact and robust stainless steel housing
  • Spanner flat for easy mounting
  • High shock and vibration resistance for mobile applications
Technical specifications
Filter Property Value
Connection cable, PUR, 0.5 m/M12 connector
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 60 V
Degree of protection (IP) IP65/IP67
Length 56.5 mm
Assembly flush mounting M11, flush
switching current 100 mA
Version PNP
Product type position sensor
Logistics
Property Value
Country of origin DE
Customs tariff number 85365019
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
