KX5002 | IFM electronic

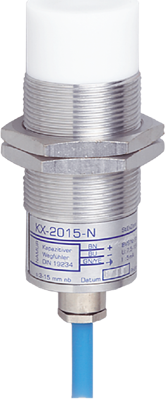

Capacitive sensor, NAMUR, flush mounting M34, not flush, 1 Form B (N/C), KX5002
Unit Price (€ / pc.)
327.7260 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
327.73 € *
Price list
Quantity
Price per unit*
1 pcs.
327.7260 €
3 pcs.
319.4674 €
*incl. VAT plus shipping costs
Subject to prior sale
Capacitive sensor, KX5002, IFM electronic
Features
- For applications in hazardous areas
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status by LED
- For connection to intrinsically safe circuits
- High mechanical stability thanks to robust metal housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | capacitive sensor | |
| Version | NAMUR | |
| Latching switching function | 1 Form B (N/C) | |
| Detecting distance | 15 mm | |
| Assembly | flush mounting M34, not flush | |
| Connection | cable, PVC 3x0.5 mm², 6 m | |
| Degree of protection (IP) | IP65 | |
| Length | 92 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
