Capacitive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 200 mA, KN5121
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
620.9301 € *
Standard delivery time from the manufacturer is: 1 Week

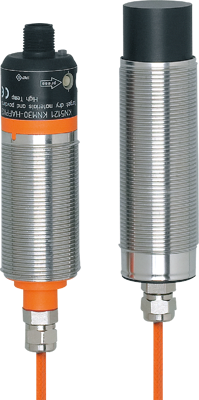

Capacitive sensor, KN5121, IFM electronic
Features
- For use in plastics machines and crystallizers
- Easy adjustment to the empty and full state via pushbutton
- Level detection of granulates up to 250 °C
- LED display to check operation, switching status and function
- Resistant to electrostatic discharge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | capacitive high temperature sensor | |
| Version | PNP | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 200 mA | |
| Assembly | flush mounting M30, not flush | |
| Connection | cable, 2 m/M12 plug connector | |
| Degree of protection (IP) | IP67 | |
| Length | 116 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
