KI5207 | IFM electronic

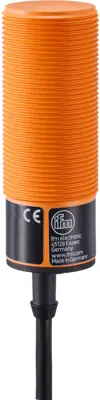

Capacitive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 250 mA, KI5207

Order No.: 82P6409
EAN: 4021179148160
MPN:
KI5207
Series: KI
KI5207 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
197.0283 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
197.03 € *
Price list
Quantity
Price per unit*
1 pcs.
197.0283 €
3 pcs.
191.8518 €
*incl. VAT plus shipping costs
Subject to prior sale

Capacitive sensor, KI5207, IFM electronic

Features

  • Easy setting of the sensing range via potentiometer
  • High noise immunity
  • Clearly visible indication of the switching status
  • With PVC cable
  • Output function normally open / normally closed programmable
Technical specifications
Filter Property Value
Connection cable, PVC 3x0.5 mm², 2 m
Detecting distance 3-15 mm
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Switching Voltage (DC) 36 V
Degree of protection (IP) IP65
Length 81 mm
Assembly flush mounting M30, not flush
switching current 250 mA
Version PNP
Product type capacitive sensor
Logistics
Property Value
Country of origin DE
Customs tariff number 85365019
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
