KI5086 | IFM electronic
Capacitive sensor, PNP/NPN, IO-Link, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, KI5086
Order No.: 82P6407
EAN: 4021179148061
MPN:
KI5086
Unit Price (€ / pc.)
201.3361 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
201.34 € *
Price list
Quantity
Price per unit*
1 pcs.
201.3361 €
3 pcs.
196.0644 €
*incl. VAT plus shipping costs
Subject to prior sale

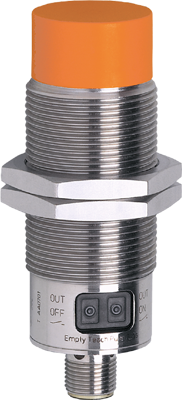

Capacitive sensor, KI5086, IFM electronic
Features
- Easy adjustment to the empty and full state via pushbutton or IO-Link
- Output function normally open / normally closed programmable
- Clearly visible indication of the switching status
- Robust stainless steel housing for use in harsh industrial environments
- Automatic detection of the output load PNP/NPN
Technical specifications
| Version | PNP/NPN, IO-Link | |
| Detecting distance | 15 mm | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | capacitive sensor | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Assembly | flush mounting M30, not flush | |
| Switching Voltage (DC) | 30 V | |
| Length | 90 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
