KI5083 | IFM electronic

Capacitive sensor, PNP, IO-Link, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 200 mA, KI5083

Order No.: 82P6404
EAN: 4021179148030
MPN:
KI5083

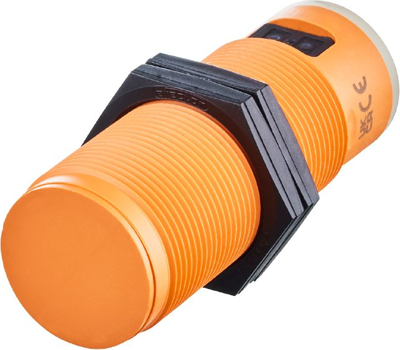

KI5083 IFM electronic Proximity Switches, Reed switches Image 1

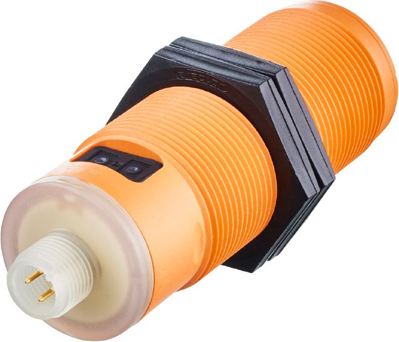

KI5083 IFM electronic Proximity Switches, Reed switches Image 2

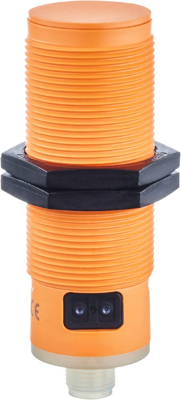

KI5083 IFM electronic Proximity Switches, Reed switches Image 3
Image may differ
Unit Price (€ / pc.)
174.6682 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
174.67 € *
Price list
Quantity
Price per unit*
1 pcs.
174.6682 €
3 pcs.
170.0748 €
*incl. VAT plus shipping costs
Subject to prior sale

Capacitive sensor, KI5083, IFM electronic

Features

  • Output function normally open / normally closed programmable
  • Clearly visible indication of the switching status
  • Easy adjustment to the empty and full state via pushbutton or IO-Link
  • Resistant to electrostatic discharge
Technical specifications
Version PNP, IO-Link
Detecting distance 20 mm
Connection M12-connector
Degree of protection (IP) IP65/IP67
Product type capacitive sensor
switching current 200 mA
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Assembly flush mounting M30, not flush
Switching Voltage (DC) 36 V
Length 90 mm
Logistics
Country of origin DE
Customs tariff number 85365019
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
