KI5023 | IFM electronic
Capacitive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 55 V (DC), 250 mA, KI5023
Order No.: 82P6397
EAN: 4021179147439
MPN:
KI5023
Unit Price (€ / pc.)
187.2822 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
187.28 € *
Price list
Quantity
Price per unit*
1 pcs.
187.2822 €
3 pcs.
182.3794 €
*incl. VAT plus shipping costs
Subject to prior sale

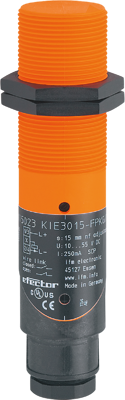

Capacitive sensor, KI5023, IFM electronic
Features
- High noise immunity
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
- With terminal chamber that can be rotated by 90°
- For position detection or level monitoring
Technical specifications
| Version | PNP | |
| Detecting distance | 15 mm | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Degree of protection (IP) | IP65 | |
| Product type | capacitive sensor | |
| switching current | 250 mA | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Assembly | flush mounting M30, not flush | |
| Switching Voltage (DC) | 55 V | |
| Length | 125 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
