KG5071 | IFM electronic
Capacitive sensor, PNP, IO-Link, flush mounting M18, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 200 mA, KG5071
Order No.: 82P6355
EAN: 4021179146517
MPN:
KG5071
Unit Price (€ / pc.)
171.2886 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
171.29 € *
Price list
Quantity
Price per unit*
1 pcs.
171.2886 €
3 pcs.
166.7904 €
*incl. VAT plus shipping costs
Subject to prior sale

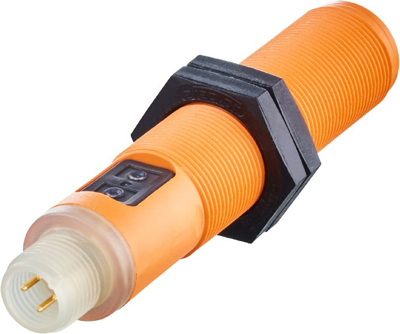

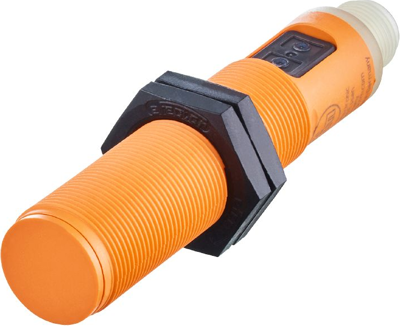

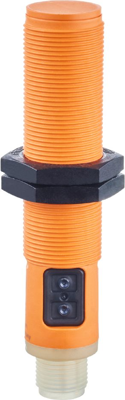

Capacitive sensor, KG5071, IFM electronic
Features
- Output function normally open / normally closed programmable
- Clearly visible indication of the switching status via LED ring
- Easy adjustment to the empty and full state via pushbutton
- For position detection or level monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | PNP, IO-Link | |
| Connection | M12-connector | |
| Assembly | flush mounting M18, not flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 87 mm | |
| Product type | capacitive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
