KG5069 | IFM electronic
Capacitive sensor, PNP, IO-Link, flush mounting M18, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 200 mA, KG5069
Unit Price (€ / pc.)
171.5504 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
171.55 € *
Price list
Quantity
Price per unit*
1 pcs.
171.5504 €
3 pcs.
167.0522 €
*incl. VAT plus shipping costs
Subject to prior sale

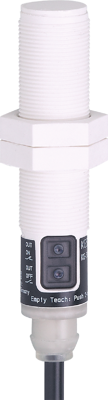

Capacitive sensor, KG5069, IFM electronic
Features
- High noise immunity
- Reliable level detection of conductive media
- Output function normally open / normally closed programmable
- Clearly visible indication of the switching status via LED ring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | capacitive sensor | |
| Version | PNP, IO-Link | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Switching Voltage (DC) | 36 V | |
| switching current | 200 mA | |
| Detecting distance | 8 mm | |
| Assembly | flush mounting M18, not flush | |
| Connection | cable, PVC 3x0.34 mm², 2 m | |
| Degree of protection (IP) | IP65/IP67 | |
| Length | 77 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
