KG0009 | IFM electronic

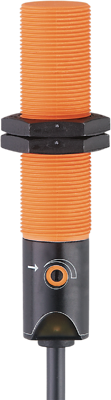

Capacitive sensor, PBT, flush mounting M18, not flush, 1 Form A (N/O), 250 V (DC), 100 mA, KG0009
Order No.: 82P6340
EAN: 4021179145787
MPN:
KG0009
Unit Price (€ / pc.)
254.5767 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
254.58 € *
Price list
Quantity
Price per unit*
1 pcs.
254.5767 €
3 pcs.
247.9008 €
*incl. VAT plus shipping costs
Subject to prior sale
Capacitive sensor, KG0009, IFM electronic
Features
- With combined AC/DC output stage
- Two-wire technology
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PBT | |
| Connection | cable, PVC 2x0.34 mm², 2 m | |
| Assembly | flush mounting M18, not flush | |
| switching current | 100 mA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| Length | 84 mm | |
| Product type | capacitive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
