IZ5048 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, IZ5048
Order No.: 82P6307
EAN: 4021179141673
MPN:
IZ5048
Unit Price (€ / pc.)
129.2340 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
129.23 € *
Price list
Quantity
Price per unit*
1 pcs.
129.2340 €
3 pcs.
125.6640 €
5 pcs.
122.2725 €
*incl. VAT plus shipping costs
Subject to prior sale

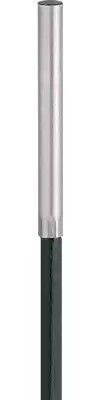

Inductive sensor, IZ5048, IFM electronic
Features
- Particularly short housing with only 3 mm diameter
- For use where space is restricted
- Space-saving connection technology
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Detecting distance | 1 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting, not flush | |
| diameter | 3 mm | |
| switching current | 100 mA | |
| Length | 27 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | cable, PVC 3x0.14 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
