IV5061 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, antivalent, 30 V (DC), 200 mA, IV5061
Order No.: 82P6280
EAN: 4021179310642
MPN:
IV5061
Unit Price (€ / pc.)
155.1284 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
155.13 € *
Price list
Quantity
Price per unit*
1 pcs.
155.1284 €
3 pcs.
150.8444 €
5 pcs.
146.7865 €
*incl. VAT plus shipping costs
Subject to prior sale

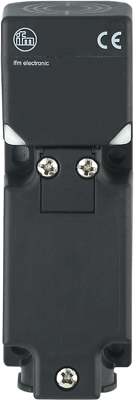

Inductive sensor, IV5061, IFM electronic
Features
- Five positions of the sensing face selectable
- Long sensing range for high uptime
- Robust housing for use in harsh industrial environments
- For use in materials handling
- LED display to check switching status and operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Length | 118 mm | |
| Switching Voltage (DC) | 30 V | |
| Detecting distance | 40 mm | |
| Degree of protection (IP) | IP68/IP69K | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Version | PNP | |
| Assembly | flush mounting, not flush | |
| switching current | 200 mA | |
| Latching switching function | antivalent |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
