IV5060 | IFM electronic
Inductive sensor, PNP, flush mounting, flush, 1 Form A (N/O), 30 V (DC), 200 mA, IV5060
Order No.: 82P6279
EAN: 4021179310635
MPN:
IV5060
Unit Price (€ / pc.)
172.5262 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
172.53 € *
Price list
Quantity
Price per unit*
1 pcs.
172.5262 €
3 pcs.
168.0042 €
*incl. VAT plus shipping costs
Subject to prior sale

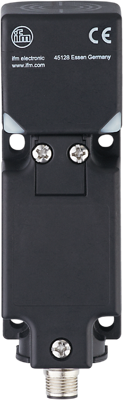

Inductive sensor, IV5060, IFM electronic
Features
- Five positions of the sensing face selectable
- Long sensing range for high uptime
- Robust housing for use in harsh industrial environments
- For use in materials handling
- LED display to check switching status and operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 20 mm | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting, flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 118 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
