IV0009 | IFM electronic
Inductive sensor, PA, flush mounting, flush, 1 Form A (N/O) + 1 Form B (N/C), 230 V (DC), 500 mA, IV0009
Order No.: 82P6275
EAN: 4021179310604
MPN:
IV0009
Unit Price (€ / pc.)
170.0272 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
170.03 € *
Price list
Quantity
Price per unit*
1 pcs.
170.0272 €
3 pcs.
165.3267 €
5 pcs.
160.8761 €
*incl. VAT plus shipping costs
Subject to prior sale

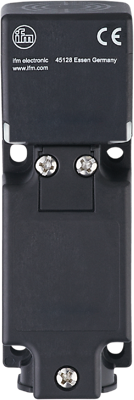

Inductive sensor, IV0009, IFM electronic
Features
- Five positions of the sensing face selectable
- Long sensing range for high uptime
- Robust housing for use in harsh industrial environments
- For use in materials handling
- Output function normally open / normally closed programmable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 20 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PA | |
| Connection | connection terminal 2.5 mm²/cable gland M20 | |
| Assembly | flush mounting, flush | |
| switching current | 500 mA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 230 V | |
| Length | 118 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
