IS5071 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O), 30 V (DC), 200 mA, IS5071
Unit Price (€ / pc.)
103.0183 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
103.02 € *
Price list
Quantity
Price per unit*
1 pcs.
103.0183 €
3 pcs.
100.1742 €
5 pcs.
97.4729 €
*incl. VAT plus shipping costs
Subject to prior sale

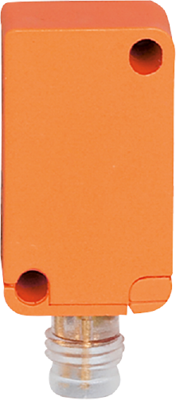

Inductive sensor, IS5071, IFM electronic
Features
- Particularly space-saving rectangular housing
- For use where space is restricted
- Very high switching frequency
- Long sensing range for high uptime
- With space-saving M8 connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 30 V | |
| Connection | M8-connector | |
| Degree of protection (IP) | IP65/IP67 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 200 mA | |
| Assembly | flush mounting, not flush | |
| Detecting distance | 4 mm | |
| Version | PNP | |
| Product type | inductive sensor | |
| Length | 28 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
