IS3501 | IFM electronic
Inductive sensor, PBT, flush mounting, flush, 1 Form A (N/O), 140 V (DC), 200 mA, IS3501
Unit Price (€ / pc.)
134.8151 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
134.82 € *
Price list
Quantity
Price per unit*
1 pcs.
134.8151 €
3 pcs.
131.0785 €
5 pcs.
127.5561 €
*incl. VAT plus shipping costs
Subject to prior sale

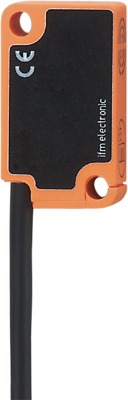

Inductive sensor, IS3501, IFM electronic
Features
- With combined AC/DC output stage
- Two-wire technology
- Particularly space-saving rectangular housing
- For use where space is restricted
- Wide operating temperature range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 140 V | |
| Connection | cable, PVC 2x0.25 mm², 0.3 m | |
| Degree of protection (IP) | IP67 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 200 mA | |
| Assembly | flush mounting, flush | |
| Switching Voltage (AC) | 140 V | |
| Detecting distance | 2 mm | |
| Version | PBT | |
| Product type | inductive sensor | |
| Length | 28 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
