IQ2009 | IFM electronic
Inductive sensor, PNP/NPN, IO-Link, flush mounting, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IQ2009
Order No.: 82P6231
EAN: 4021179316637
MPN:
IQ2009
Unit Price (€ / pc.)
130.0908 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
130.09 € *
Price list
Quantity
Price per unit*
1 pcs.
130.0908 €
3 pcs.
126.4851 €
5 pcs.
123.0936 €
*incl. VAT plus shipping costs
Subject to prior sale

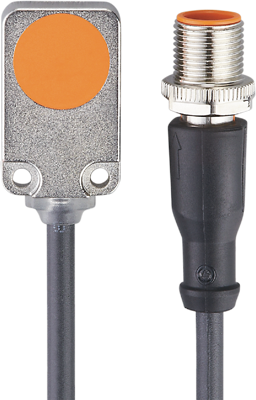

Inductive sensor, IQ2009, IFM electronic
Features
- Setting options PNP/NPN or NO/NC help to reduce storage costs
- Long life and robustness thanks to flush installation and a high temperature range
- Particularly compact housing for use where space is restricted
Technical specifications
| Detecting distance | switching point 1.4-7 mm, measuring range 0.75-7.5 mm | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68 | |
| Assembly | flush mounting, flush | |
| switching current | 100 mA | |
| Length | 32 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN, IO-Link | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
