IQ2008 | IFM electronic

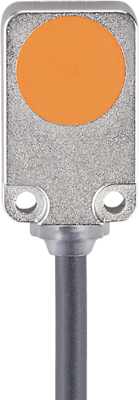

Inductive sensor, PNP/NPN, IO-Link, flush mounting, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IQ2008
Order No.: 82P6230
EAN: 4021179316620
MPN:
IQ2008
Unit Price (€ / pc.)
123.0698 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
123.07 € *
Price list
Quantity
Price per unit*
1 pcs.
123.0698 €
3 pcs.
119.6664 €
5 pcs.
116.4415 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IQ2008, IFM electronic
Features
- Setting options PNP/NPN or NO/NC help to reduce storage costs
- Long life and robustness thanks to flush installation and a high temperature range
- Particularly compact housing for use where space is restricted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | switching point 1.4-7 mm, measuring range 0.75-7.5 mm | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68 | |
| Version | PNP/NPN, IO-Link | |
| Connection | cable, PUR 3x0.34 mm², 2 m | |
| Assembly | flush mounting, flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 32 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
