IM5129 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, 1 Form A (N/O), 36 V (DC), 200 mA, IM5129
Order No.: 82P6148
EAN: 4021179131407
MPN:
IM5129
Unit Price (€ / pc.)
89.7141 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
89.71 € *
Price list
Quantity
Price per unit*
1 pcs.
89.7141 €
3 pcs.
87.2389 €
5 pcs.
84.8827 €
*incl. VAT plus shipping costs
Subject to prior sale

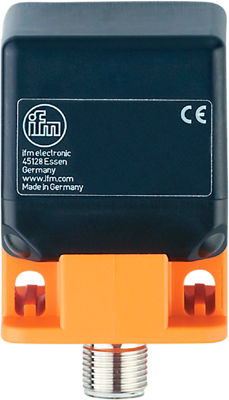

Inductive sensor, IM5129, IFM electronic
Features
- Magnetic-field immune for welding applications
- Resistant to weld slag thanks to non-stick coating
- Five positions of the sensing face selectable
- Long sensing range for use in conveying
- Correction factor 1: Constant sensing range on all metals
Technical specifications
| Detecting distance | 40 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting, not flush | |
| switching current | 200 mA | |
| Length | 54 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 36 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
