IM5123 | IFM electronic
Inductive sensor, PNP, flush mounting, flush, antivalent, 36 V (DC), 200 mA, IM5123
Order No.: 82P6143
EAN: 4021179131346
MPN:
IM5123
Unit Price (€ / pc.)
82.1100 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
82.11 € *
Price list
Quantity
Price per unit*
1 pcs.
82.1100 €
3 pcs.
78.5638 €
5 pcs.
75.2913 €
*incl. VAT plus shipping costs
Subject to prior sale

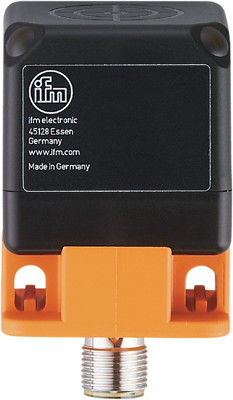

Inductive sensor, IM5123, IFM electronic
Features
- Long sensing range for use in conveying
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
- LED display to check switching status and operation
- Corner LEDs clearly visible in any mounted position
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | antivalent | |
| Detecting distance | 20 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting, flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 54 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
