IM5115 | IFM electronic
Inductive sensor, PNP, flush mounting, flush, 1 Form A (N/O), 36 V (DC), 200 mA, IM5115
Order No.: 81P9340
EAN: 4021179131261
MPN:
IM5115
Unit Price (€ / pc.)
73.7681 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
73.77 € *
Price list
Quantity
Price per unit*
1 pcs.
73.7681 €
5 pcs.
70.8169 €
10 pcs.
68.0918 €
*incl. VAT plus shipping costs
Subject to prior sale

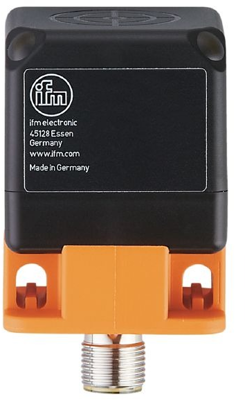

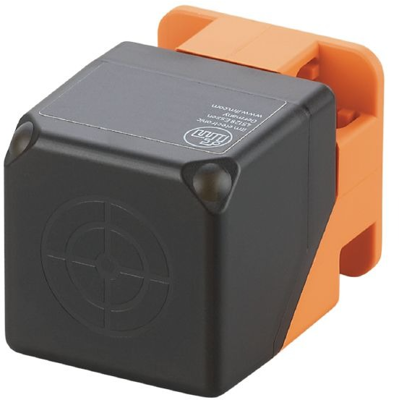

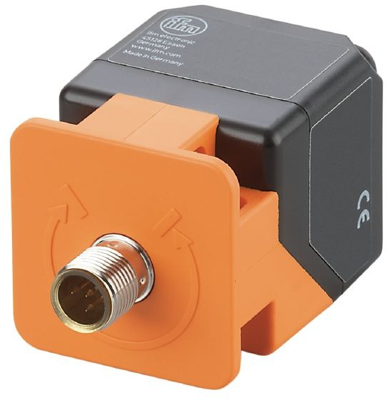

Inductive sensor, IM5115, IFM
The IM5115 is a inductive sensor with long sensing range for use in conveying. Also has a five positions of the sensing face selectable.
Features
- LED display to check switching status and operation
- Corner LEDs clearly visible in any mounted position
- Robust housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 54 mm | |
| Version | PNP | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP67 | |
| Product type | inductive sensor | |
| Assembly | flush mounting, flush | |
| switching current | 200 mA | |
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 20 mm | |
| Switching Voltage (DC) | 36 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
