IM510A | IFM electronic
Inductive sensor, PC/PA/stainless steel, flush mounting, flush, antivalent, 30 V (DC), 200 mA, IM510A
Unit Price (€ / pc.)
145.4061 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
145.41 € *
Price list
Quantity
Price per unit*
1 pcs.
145.4061 €
3 pcs.
141.3839 €
5 pcs.
137.5878 €
*incl. VAT plus shipping costs
Subject to prior sale

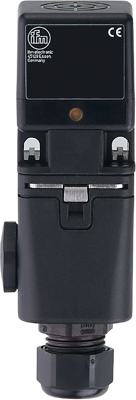

Inductive sensor, IM510A, IFM electronic
Features
- For applications in hazardous areas
- Long sensing range for use in conveying
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
- Complementary output function NO/NC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | connection terminal 0.34-2.5 mm² | |
| Latching switching function | antivalent | |
| Product type | inductive sensor | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | PC/PA/stainless steel | |
| Assembly | flush mounting, flush | |
| Switching Voltage (DC) | 30 V | |
| switching current | 200 mA | |
| Detecting distance | 20 mm | |
| Length | 105 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
