IM0054 | IFM electronic
Inductive sensor, PPE, flush mounting, flush, 1 Form A (N/O), 250 V (DC), 100 mA, IM0054
Unit Price (€ / pc.)
89.6784 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
89.68 € *
Price list
Quantity
Price per unit*
1 pcs.
89.6784 €
3 pcs.
85.8109 €
5 pcs.
82.2409 €
*incl. VAT plus shipping costs
Subject to prior sale

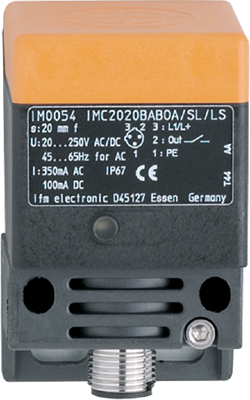

Inductive sensor, IM0054, IFM electronic
Features
- Long sensing range for use in conveying
- With combined AC/DC output and two-wire technology
- Robust housing for use in harsh industrial environments
- Five positions of the sensing face selectable
- Clearly visible indication of the switching status
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) | |
| Product type | inductive sensor | |
| Degree of protection (IP) | IP67 | |
| Version | PPE | |
| Assembly | flush mounting, flush | |
| Switching Voltage (DC) | 250 V | |
| switching current | 100 mA | |
| Detecting distance | 20 mm | |
| Length | 66 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
