IL5003 | IFM electronic
Inductive sensor, PNP, flush mounting, flush, 1 Form A (N/O), 36 V (DC), 250 mA, IL5003
Order No.: 82P6110
EAN: 4021179129237
MPN:
IL5003
Unit Price (€ / pc.)
97.7704 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
97.77 € *
Price list
Quantity
Price per unit*
1 pcs.
97.7704 €
3 pcs.
95.0691 €
5 pcs.
92.4987 €
*incl. VAT plus shipping costs
Subject to prior sale

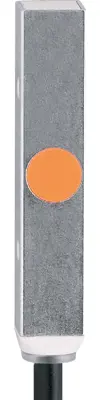

Inductive sensor, IL5003, IFM electronic
Features
- Particularly compact rectangular design
- For use where space is restricted
- Space-saving connection technology
- Clearly visible indication of the switching status
- Very high switching frequency
Technical specifications
| Detecting distance | 2 mm | |
| Degree of protection (IP) | IP65 | |
| Assembly | flush mounting, flush | |
| switching current | 250 mA | |
| Length | 40 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 36 V | |
| Connection | cable, PUR/PVC 3x0.14 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
