IIT244 | IFM electronic

Inductive sensor, PNP/NPN, IO-Link, flush mounting M30, flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, IIT244

Order No.: 82P6101
EAN: 4021179316774
MPN:
IIT244
IIT244 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
127.8179 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
127.82 € *
Price list
Quantity
Price per unit*
1 pcs.
127.8179 €
3 pcs.
124.2836 €
5 pcs.
120.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

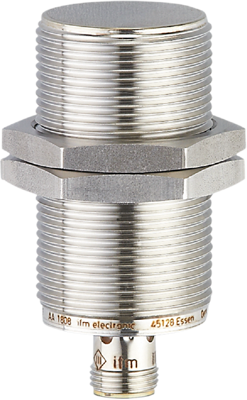

Inductive sensor, IIT244, IFM electronic

Features

  • For a precise position monitoring on machines
  • Flexible use thanks to large operating temperature range
  • Very high repeatability
Technical specifications
Detecting distance switching point 2.44-12.16 mm, measuring range 1.3-13 mm
Degree of protection (IP) IP65/IP66/IP67/IP68/IP69K
Assembly flush mounting M30, flush
switching current 100 mA
Length 65 mm
Product type inductive all metal sensor
Version PNP/NPN, IO-Link
Switching Voltage (DC) 30 V
Connection M12-connector
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Logistics
Country of origin DE
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
