IIS230 | IFM electronic
Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IIS230
Order No.: 82P6026
EAN: 4021179271714
MPN:
IIS230
Unit Price (€ / pc.)
94.5812 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
94.58 € *
Price list
Quantity
Price per unit*
1 pcs.
94.5812 €
3 pcs.
91.9632 €
5 pcs.
89.4880 €
*incl. VAT plus shipping costs
Subject to prior sale

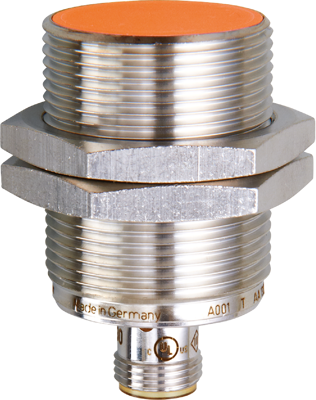

Inductive sensor, IIS230, IFM electronic
Features
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Flexible use thanks to large operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced storage due to wide range of applications
Technical specifications
| Detecting distance | 15 mm | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Assembly | flush mounting M30, flush | |
| switching current | 100 mA | |
| Length | 50 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
