IIS206 | IFM electronic

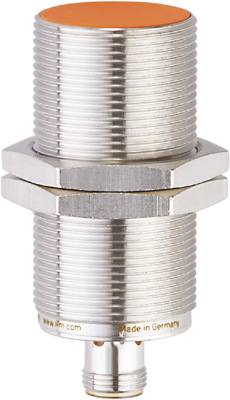

Inductive sensor, PNP/NPN, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IIS206

Order No.: 82P6014
EAN: 4021179117982
MPN:
IIS206
Series: IIS
IIS206 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
105.7910 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
105.79 € *
Price list
Quantity
Price per unit*
1 pcs.
105.7910 €
3 pcs.
102.8636 €
5 pcs.
100.0909 €
*incl. VAT plus shipping costs
Subject to prior sale

Inductive sensor, IIS206, IFM electronic

Features

  • Robust metal housing for use in harsh industrial environments
  • Clearly visible indication of the switching status
  • Operation as three-wire or two-wire possible
  • Long sensing range for high uptime
  • With optical mounting and setting aid
Technical specifications
Filter Property Value
Connection M12-connector
Detecting distance 15 mm
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 30 V
Degree of protection (IP) IP67
Length 70 mm
Assembly flush mounting M30, flush
switching current 100 mA
Version PNP/NPN
Product type inductive sensor
Logistics
Property Value
Country of origin DE
Customs tariff number 85365019
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
