IIM220 | IFM electronic
Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 60 V (DC), 200 mA, IIM220
Order No.: 82P6002
EAN: 4021179328654
MPN:
IIM220
Unit Price (€ / pc.)
159.8051 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
159.81 € *
Price list
Quantity
Price per unit*
1 pcs.
159.8051 €
3 pcs.
155.3902 €
5 pcs.
151.2014 €
*incl. VAT plus shipping costs
Subject to prior sale

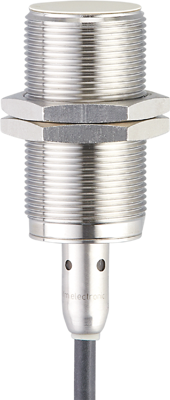

Inductive sensor, IIM220, IFM electronic
Features
- E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- Wide operating temperature range
- High ingress protection for the requirements of harsh environmental conditions
- High EMC resistance according to automotive standards
- Large operating voltage range
Technical specifications
| Detecting distance | 12 mm | |
| Degree of protection (IP) | IP67/IP69K | |
| Assembly | flush mounting M30, flush | |
| switching current | 200 mA | |
| Length | 81 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 60 V | |
| Connection | cable, PUR 3x0.5 mm², 25 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
