IIM211 | IFM electronic
Inductive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O), 60 V (DC), 200 mA, IIM211
Order No.: 82P5997
EAN: 4021179117852
MPN:
IIM211
Unit Price (€ / pc.)
126.9254 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
126.93 € *
Price list
Quantity
Price per unit*
1 pcs.
126.9254 €
3 pcs.
123.4030 €
5 pcs.
120.0948 €
*incl. VAT plus shipping costs
Subject to prior sale

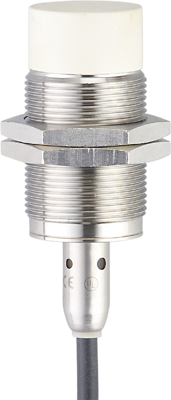

Inductive sensor, IIM211, IFM electronic
Features
- E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- Wide operating temperature range
- High ingress protection for the requirements of harsh environmental conditions
- High EMC resistance according to automotive standards
- Large operating voltage range
Technical specifications
| Detecting distance | 22 mm | |
| Degree of protection (IP) | IP67/IP69K | |
| Assembly | flush mounting M30, not flush | |
| switching current | 200 mA | |
| Length | 81 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 60 V | |
| Connection | cable, PUR 3x0.5 mm², 6 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
