II7104 | IFM electronic

Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, II7104

Order No.: 81P9336
EAN: 4021179254601
MPN:
II7104

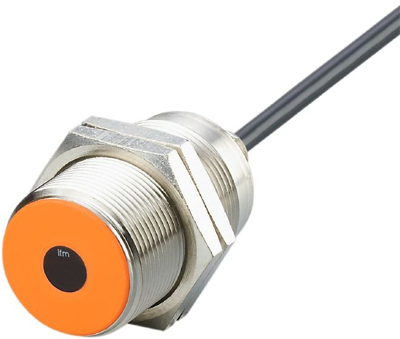

II7104 IFM electronic Proximity Switches, Reed switches Image 1

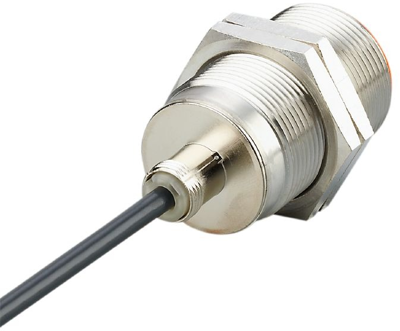

II7104 IFM electronic Proximity Switches, Reed switches Image 2

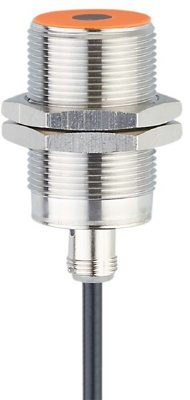

II7104 IFM electronic Proximity Switches, Reed switches Image 3
Image may differ
Unit Price (€ / pc.)
60.0117 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
60.01 € *
Price list
Quantity
Price per unit*
1 pcs.
60.0117 €
5 pcs.
57.6079 €
10 pcs.
55.3945 €
*incl. VAT plus shipping costs
**Subject to prior sale

Inductive sensor, II7104, IFM

The II7104 is a inductive sensor with high protection rating for the requirements of harsh industrial environments and has an excellent price/performance ratio.

Features

  • Permanently legible laser type label
  • Clearly visible indication of the switching status
  • Robust metal housing for use in harsh industrial environments
Technical specifications
Detecting distance 10 mm
Degree of protection (IP) IP67
Assembly flush mounting M30, flush
diameter 30 mm
switching current 100 mA
Length 60 mm
Product type inductive sensor
Version PNP
Switching Voltage (DC) 30 V
Connection cable, PUR 3x0.34 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin DE
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
