II7102 | IFM electronic
Inductive sensor, NPN, flush mounting M30, flush, 1 Form A (N/O), 30 V (DC), 100 mA, II7102
Unit Price (€ / pc.)
57.2390 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
57.24 € *
Price list
Quantity
Price per unit*
1 pcs.
57.2390 €
5 pcs.
54.9423 €
10 pcs.
52.8360 €
*incl. VAT plus shipping costs
Subject to prior sale

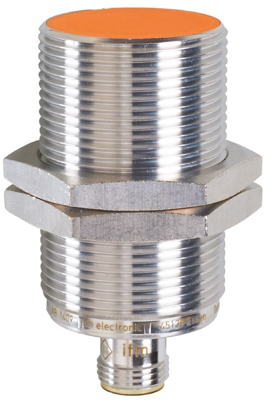

Inductive sensor, II7102, IFM
The II7102 is a inductive sensor with high protection rating for the requirements of harsh industrial environments and has an excellent price/performance ratio.
Features
- Permanently legible laser type label
- Clearly visible indication of the switching status
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | M12-connector | |
| Detecting distance | 10 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| Degree of protection (IP) | IP67 | |
| Length | 60 mm | |
| Assembly | flush mounting M30, flush | |
| diameter | 30 mm | |
| switching current | 100 mA | |
| Version | NPN | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
