II5861 | IFM electronic

Inductive sensor, PNP/NPN, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, II5861

Order No.: 82P5945
EAN: 4021179128469
MPN:
II5861

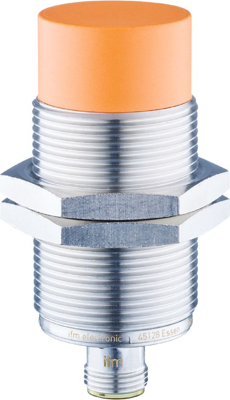

II5861 IFM electronic Proximity Switches, Reed switches Image 1

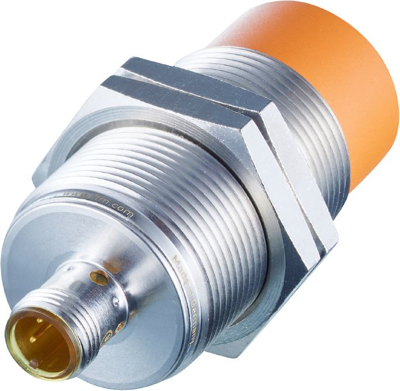

II5861 IFM electronic Proximity Switches, Reed switches Image 2

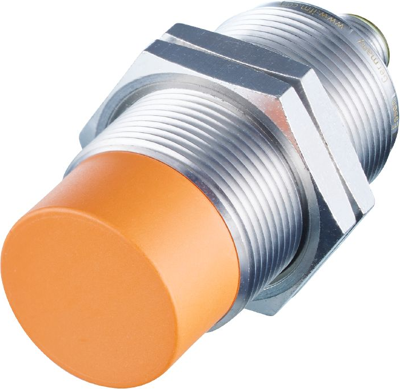

II5861 IFM electronic Proximity Switches, Reed switches Image 3
Image may differ
Unit Price (€ / pc.)
105.6244 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
105.62 € *
Price list
Quantity
Price per unit*
1 pcs.
105.6244 €
3 pcs.
102.7089 €
5 pcs.
99.9481 €
*incl. VAT plus shipping costs
Subject to prior sale

Inductive sensor, II5861, IFM electronic

Features

  • Robust housing for use in metalworking
  • Resistant to oils and coolants
  • Long sensing range for high uptime
  • Output function normally open / normally closed programmable
  • With optical mounting and setting aid
Technical specifications
Detecting distance 22 mm
Degree of protection (IP) IP67
Assembly flush mounting M30, not flush
switching current 100 mA
Length 70 mm
Product type inductive sensor
Version PNP/NPN
Switching Voltage (DC) 30 V
Connection M12-connector
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Logistics
Country of origin RO
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
