II5785 | IFM electronic
Inductive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O), 30 V (DC), 200 mA, II5785
Order No.: 82P5933
EAN: 4021179127707
MPN:
II5785
Unit Price (€ / pc.)
149.9995 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
150.00 € *
Price list
Quantity
Price per unit*
1 pcs.
149.9995 €
3 pcs.
145.8583 €
5 pcs.
141.9194 €
*incl. VAT plus shipping costs
Subject to prior sale

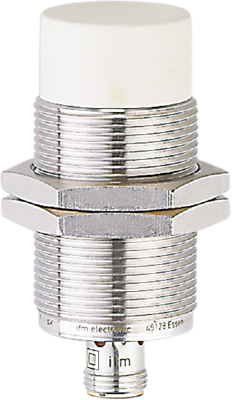

Inductive sensor, II5785, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Wide operating temperature range
- Long sensing range for high uptime
- For a precise position detection on machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 22 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M30, not flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 70 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
