II5776 | IFM electronic
Inductive sensor, PNP, flush mounting M30, not flush, 1 Form A (N/O), 30 V (DC), 200 mA, II5776
Order No.: 82P5932
EAN: 4021179127615
MPN:
II5776
Unit Price (€ / pc.)
97.1635 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
97.16 € *
Price list
Quantity
Price per unit*
1 pcs.
97.1635 €
3 pcs.
94.4741 €
5 pcs.
91.9394 €
*incl. VAT plus shipping costs
Subject to prior sale

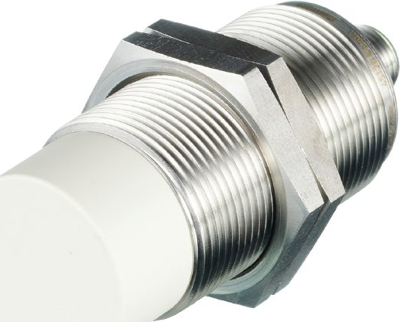

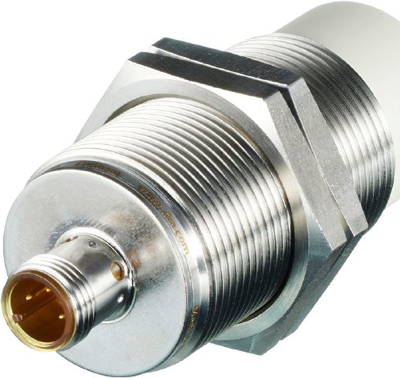

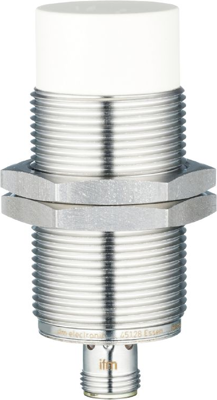

Inductive sensor, II5776, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- For a precise position detection on machines
Technical specifications
| Detecting distance | 15 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M30, not flush | |
| switching current | 200 mA | |
| Length | 75 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
